LPR: Notifications

This page provides an overview of LPR notifications. To learn more about VMS notifications, refer to the Notification Panel section of the Client Panel documentation.

Overview

To access LPR notifications:

  1. Click the Bell icon to open the Notification Panel
  2. Open the Notifications tab
  3. Select LPR in the Type field to filter notifications

Use and Functionality

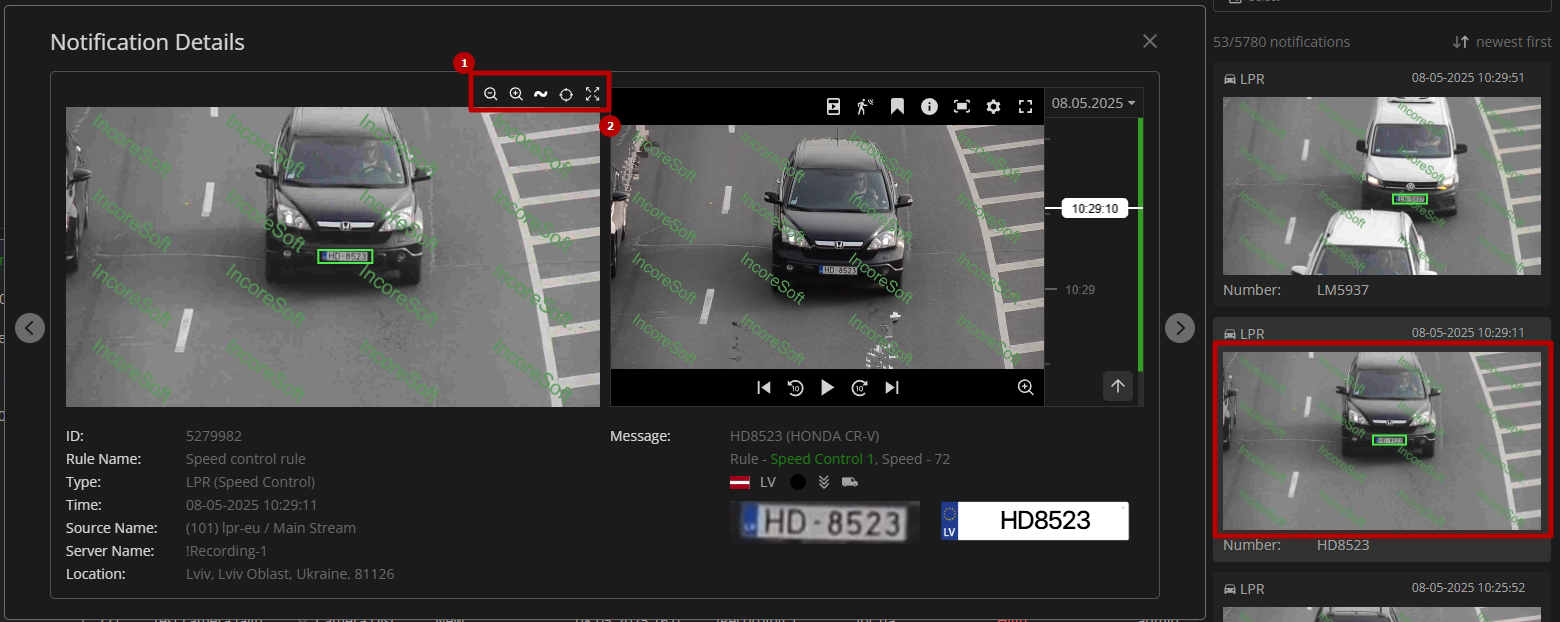

Notifications in the feed display key LPR event data. Click the event frame preview to view detailed event information. The Notification Details pop-up window provides additional tools to interact with the frame and playback:

  1. Use frame view tools:
    • Zoom Out icon (-) to zoom out from a specific area of the frame
    • Zoom In icon (+) to zoom in on a specific area of the frame
    • Reset View icon (~) to reset the frame to its original size and position
    • Target icon to zoom in on the detected object in the frame
    • Enlargement icon to open the frame in full-screen (in the full-screen press the Esc button to return to default view)
  2. Use video management tools to interact with the video fragment associated with the detected event:
    • Navigate through the recording using the playback controls below the video frame:
      • Play or pause the video
      • Skip forward or backward by 10 seconds
      • Step forward or backward frame by frame
    • Use the camera management tools available in the upper-left corner of the video frame:
      • Show on Layout, to open the camera view in a separate tab on the navigation panel
      • Motion
      • Bookmark
      • Information
      • Snapshot
      • Camera Settings
      • Full Screen
    • Click the Zoom icon below the video frame to:
      • Zoom the frame in and out using the mouse wheel or the "+" and "-" buttons
      • Move across the zoomed-in frame by holding and dragging it
    • Use the timeline on the right of the video frame to browse through the video:
      • Scroll the mouse wheel to zoom in or out on the timeline for more or less detail
      • Click and drag the timeline to navigate earlier or later in the footage
      • Click the date field at the top of the timeline to open a calendar and select a specific date
      • Use the Go to Live button at the bottom of the timeline to jump to the real-time video stream
For detailed descriptions of all camera management tools, refer to the View Grid: Camera documentation.
